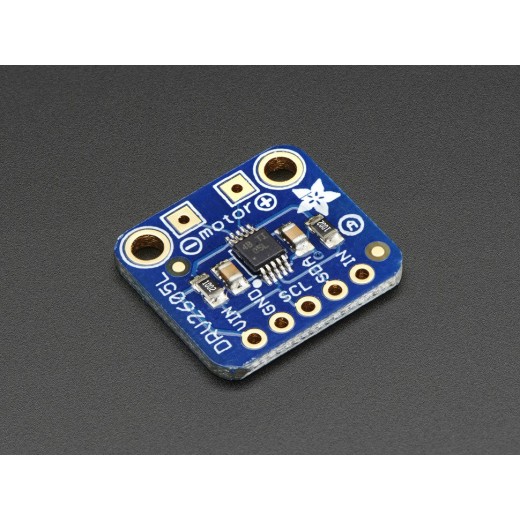

Adafruit DRV2605L Haptic Motor Controller

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91976
Availability: In Stock Views: 439
DeliverySame Day Delivery
$10.00
Qty: Add to Cart

Shipping Options to United States

Select Country:
* Region / State:

Adafruit DRV2605L Haptic Motor Controller info

The DRV2605 from TI is a fancy little motor driver. Rather than controlling a stepper motor or DC motor, its designed specifically for controlling haptic motors - buzzers and vibration motors. Normally one would just turn those kinds of motors on and off, but this driver has the ability to have various effects when driving a vibe motor. For example, ramping the vibration level up and down, 'click' effects, different buzzer levels, or even having the vibration follow a musical/audio input.

This chip is controlled over I2C - after initialization, a 'string' of multiple effects can be strung together in the chips memory and then triggered to actuate in a row. The built in effects are much much nicer than just 'on' and 'off' and will make your haptic project way nicer feeling.

It can be used with both LRA (Linear Resonance Actuator) and ERM (Eccentric Rotating Mass) type motors but we have only used it with our little vibration pancake ERM.

It works with both 3V and 5V power/logic



Adafruit DRV2605L Haptic Motor Controller - General Specifications

  • Controlling haptic motors - buzzers and vibration motors
  • 3V and 5V power/logic



Adafruit DRV2605L Haptic Motor Controller - Technical Specifications

  • Dimensions: 18mm x 17mm x 2mm / 0.7" x 0.7" x 0.1"
  • Weight: 1.0g



References

https://www.adafruit.com/product/2305
