Adafruit Push-button Power Switch Breakout

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91966
Availability: In Stock Views: 4319
DeliverySame Day Delivery
$6.00
Qty: Add to Cart

Shipping Options to United States

Select Country:
* Region / State:

Adafruit Push-button Power Switch Breakout info

The Adafruit Push-button Power Switch is a tidy little design that lets you control a DC power source using an everyday tactile button. The breakout uses a latching analog circuit that is triggered by a push of the button. Press once to turn on, then press again to turn off. The circuit uses a 3A P-FET to connect and disconnect the IN pin to the OUT pin. Works great from 3V to 14VDC and up to 3A, yet has only 0.5uA quiescent current draw.

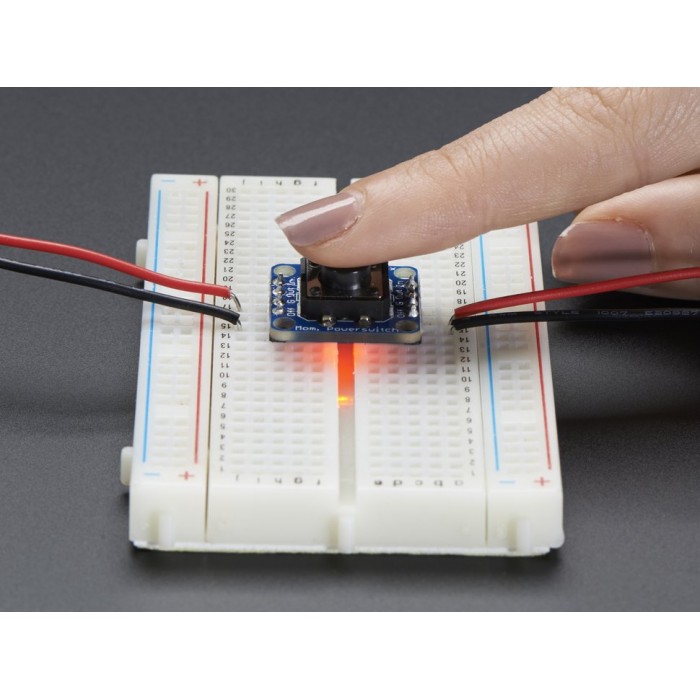

Using it is easy: connect the power source to Ground and IN, then the load from Ground to OUT. We include a 12mm tactile switch that works well but you can solder in your own switch as well. Press the button (or short the button pins) to alternate between on or off. A on-board red LED will light up when active so you know its working.

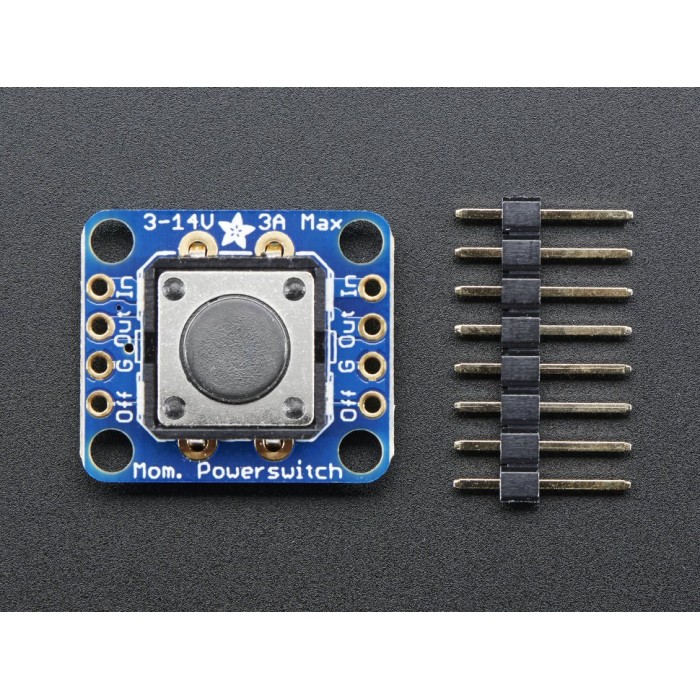

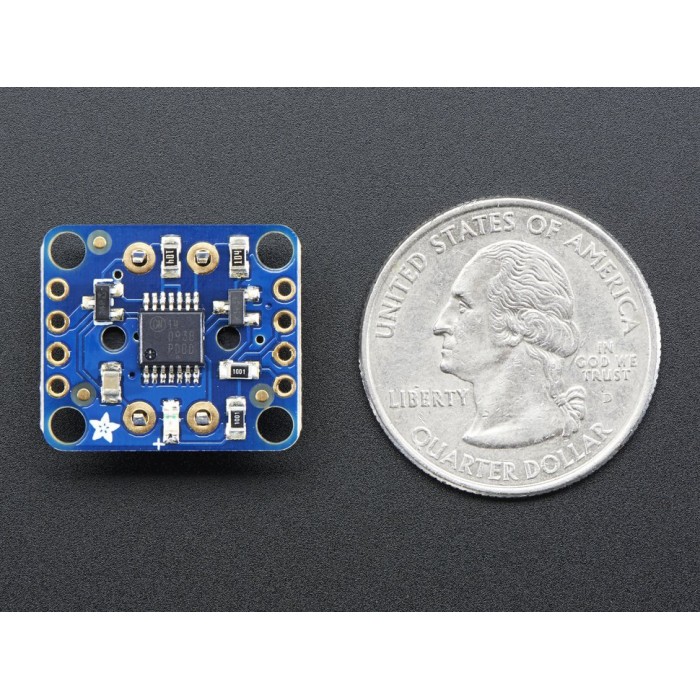

Comes with a assembled & tested bread-board friendly breakout board with four mounting holes, a 12mm tactile button, and some 0.1" male header you can solder to the board to plug it into a breadboard.



Adafruit Push-button Power Switch Breakout - Technical Specifications

  • Dimensions: 20.51mm / 0.8" x 17.75mm / 0.69" x 2.66mm / 0.1"
  • Height with Switch: 8.69mm / 0.34"
  • Weight: 2.6g
