Pololu Step-Down Voltage Regulator D15V70F5S3 - PL-2111

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91227
Availability: In Stock Views: 5354
DeliverySame Day Delivery
Product Description
  • Selectable 3.3 V and 5 V output voltage
  • Under and reverse voltage protection
  • Short circuit protection
  • Overheating protection
  • Compact design
$25.00
Qty: Add to Cart

Shipping Options to United States

Select Country:
* Region / State:

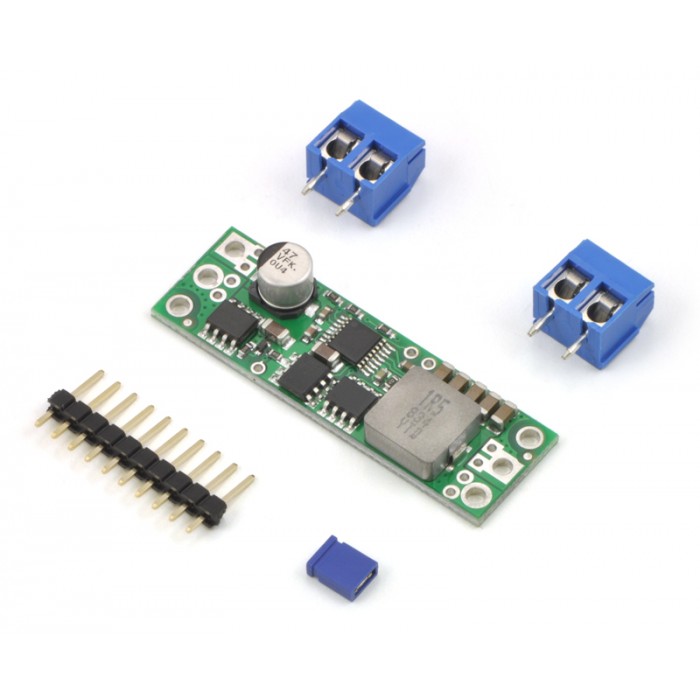

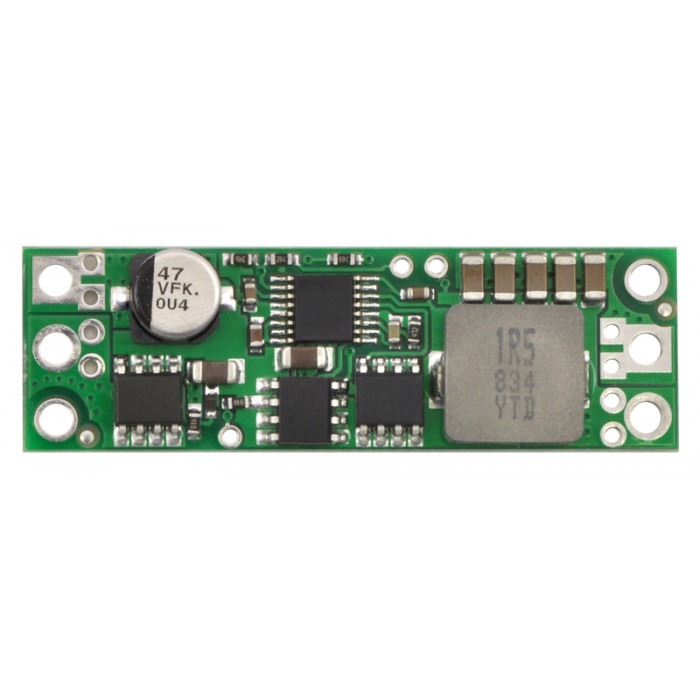

Pololu Step-Down Voltage Regulator D15V70F5S3 - PL-2111 info

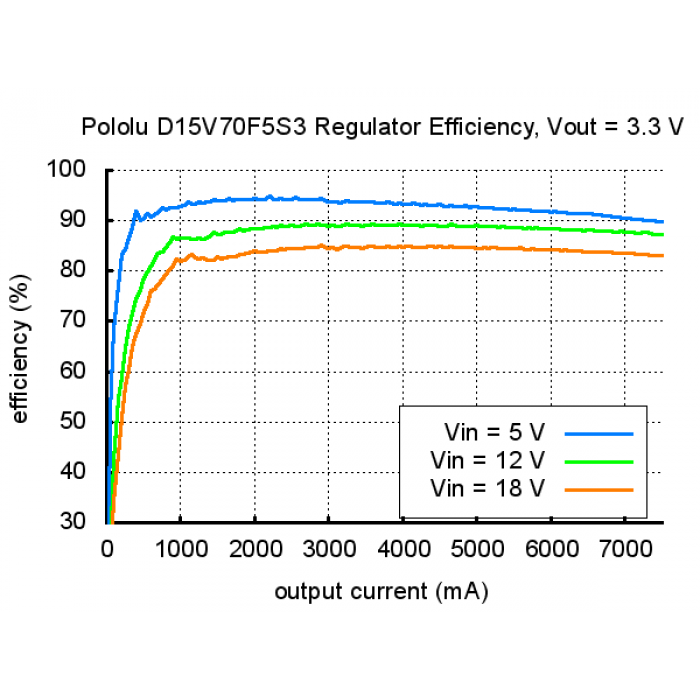

Pololu Step-Down Voltage Regulator D15V70F5S3 - PL-2111 is a switch regulator which generates either 3.3 V or 5 V user selectable output voltages from an input voltage range of 4.5 V to 24 V. Regulator has a typical efficiency of approximately 90%, more efficient than linear regulators, which increases as difference between the input and output voltage is high.

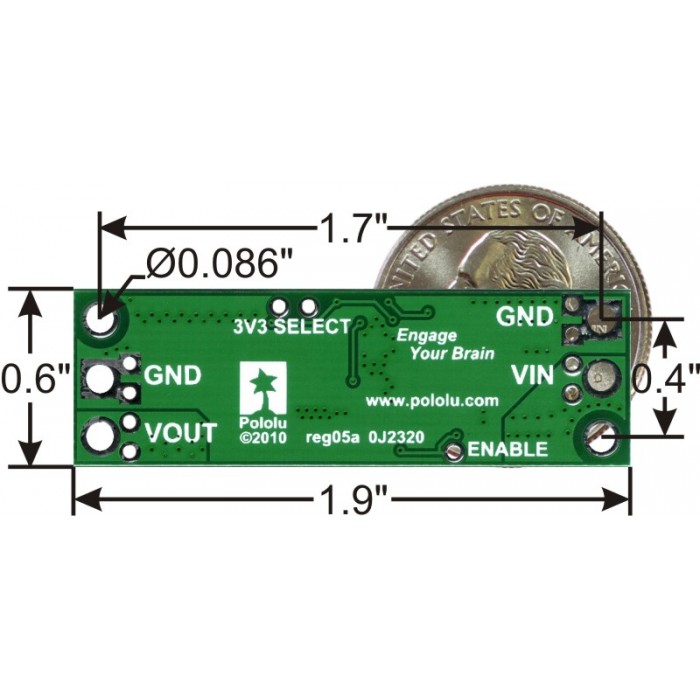

Pololu Step-Down Voltage Regulator D15V70F5S3 - PL-2111 has 5 onboard connections: 3.3 V select (3V3 SELECT), enable (ENABLE), input voltage (VIN), ground (GND), and output voltage (VOUT)

Pololu Step-Down Voltage Regulator D15V70F5S3 - PL-2111 has protection against under and reverse voltage, short circuit, and overheating.



Pololu Step-Down Voltage Regulator D15V70F5S3 - General Specifications

  • Selectable 3.3 V and 5 V output voltage
  • Under and reverse voltage protection
  • Short circuit protection
  • Overheating protection
  • Compact design



Pololu Step-Down Voltage Regulator D15V70F5S3 - Technical Specifications

  • Input voltage: 4.5 - 12 V
  • Output voltage: 3.3 and 5 V
  • Continuous output current: 7 A
  • Width: 4.8 cm
  • Height: 1.5 cm
  • Depth: 0.8 cm
  • Weight: 6 g



References

Pololu Web Sitehttps://www.pololu.com/product/2111/specs
