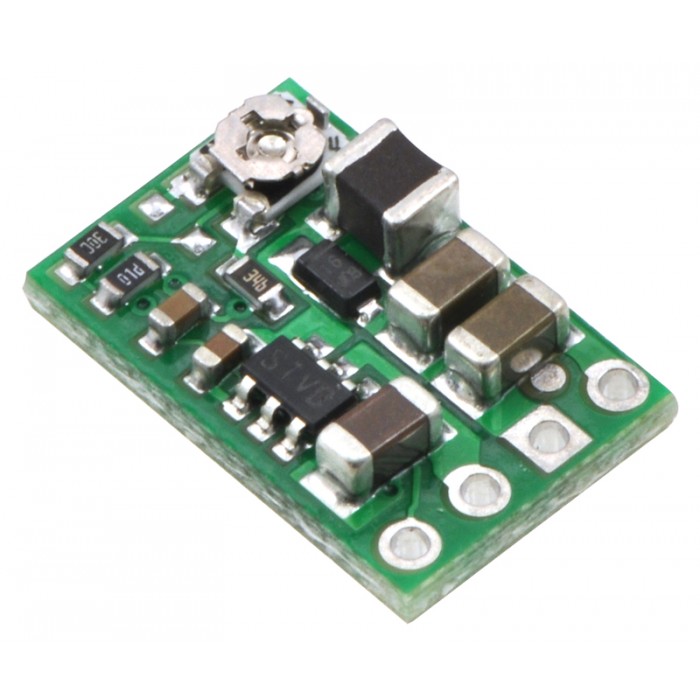

Pololu Step-Down Voltage Regulator D24V6ALV - PL-2103

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91231
Availability: SOLD OUT Views: 5866
Product Description
  • Input voltage: 4.5 V to 42 V (note: the input voltage should be at least a few volts above the output voltage)
  • Output adjustable from 2.5V to 7.5V
  • Maximum output current of 600 mA
  • 1.25 MHz switching frequency
  • 2 mA typical no-load quiescent current
  • Integrated over-temperature and over-current shutoff
$10.00
Qty:

Shipping Options to United States

Select Country:
* Region / State:

Pololu Step-Down Voltage Regulator D24V6ALV - PL-2103 info

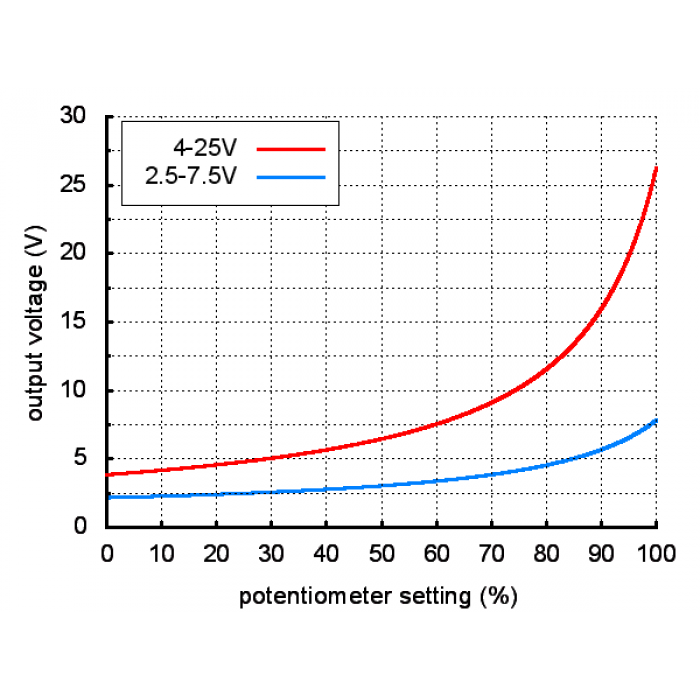

Pololu Step-Down Voltage Regulator D24V6ALV generates lower, user-adjustable output voltages from a wide input voltage range of 4.5 to 42 V. It is a switching regulator (also called switched-mode power supply (SMPS) or DC-to-DC converter) and has a typical efficiency of 80%, which is much more efficient than linear voltage regulators, especially when the difference between the input and output voltage is large. The output voltage range is 2.5V to 7.5V and it is set using the board’s trimmer potentiometer. The maximum output current of the board is 600mA

Pololu Step-Down Voltage Regulator D24V6ALV has short-circuit protection, and thermal shutdown prevents damage from overheating. The board does not have reverse-voltage protection.



Pololu Step-Down Voltage Regulator D24V6ALV - General Specifications

  • Input voltage: 4.5 V to 42 V (note: the input voltage should be at least a few volts above the output voltage)
  • Output adjustable from 2.5V to 7.5V
  • Maximum output current of 600 mA
  • 1.25 MHz switching frequency
  • 2 mA typical no-load quiescent current
  • Integrated over-temperature and over-current shutoff



Pololu Step-Down Voltage Regulator D24V6ALV - Technical Specifications

  • Minimum operating voltage: 4.5 V
  • Maximum operating voltage: 42 V
  • Maximum output current: 600 mA
  • Minimum output voltage: 2.5 V
  • Maximum output voltage: 7.5 V
  • Size: 15mm × 10mm × 4 mm
  • Weight: 0.8 g



Videos





Documents





References

Pololu Web Sitehttps://www.pololu.com/product/2103
