Raspberry Pi NFC Module info

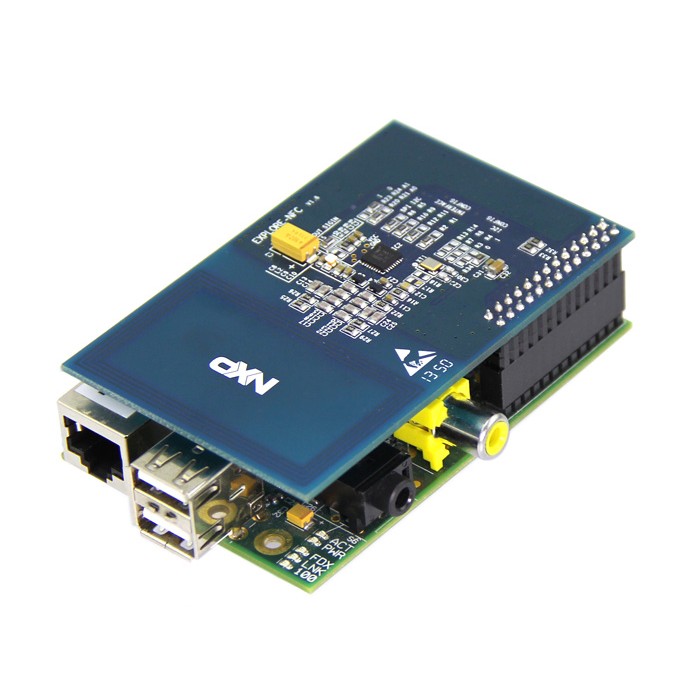

EXPLORE-NFC is a high-performance and NFC-compatible expansion card. Designed specifically for Raspberry Pi, this module is compatible with Raspberry 3/2 / B + / A + / B models. The card is designed and manufactured by NXP and based on NXP PN512.
Read / write mode supports P2P modes. The card has a high performance built-in NFC antenna as well as a convenient interface with the SPI interface.
- High-performance NFC-compatible expansion card
- It is based on NXP PN512.
- Integrated RF detector
- Integrated Data mode detector
- Supported by ISO / IEC 14443A / MIFARE
- ISO / IEC 14443 B Read / Write mode
- Operating distance up to 50mm in read / write mode
- Operating distance up to 50mm in NFCIP-1 mode
- FIFO buffer 64 bytes send and receive
- Flexible cutting modes
- Restartable with low power function
- Flexible interface selection (SPI or I2C). The software only offers SPI support.
- High performance integrated antenna
