Raspberry Pi Robot Board v2 by MonkMakes

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91311
Availability: PREORDER Views: 6913
Delivery3 - 4 Weeks
Product Description
  • Turn your Raspberry Pi into a bi-directional motor controller
  • The board can supply the Raspberry Pi with up to 2 amps of power
  • The board can run two DC motors or a stepper
Please note that this product is sold as PREORDER and will be delivered in 3 - 4 Weeks upon payment.
$36.00
Qty: Add to Cart

Shipping Options to United States

Select Country:
* Region / State:

Raspberry Pi Robot Board v2 by MonkMakes info

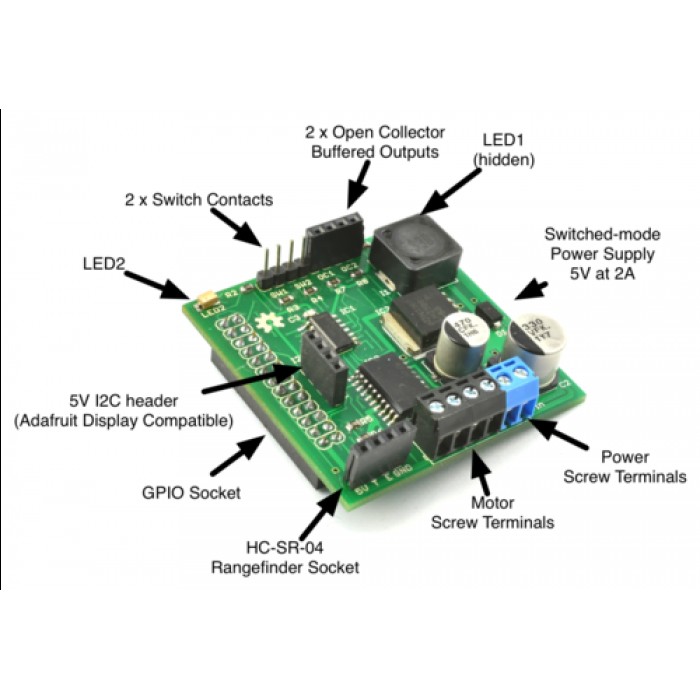

Raspberry Pi Robot Board v2 by MonkMakes is an expansion board designed to turn your Raspberry Pi into a motor controller. This board comes fully assembled and includes a switched-mode power supply so you can supply your Raspberry Pi from a variety of battery packs.

The board fits right on top of your Pi's GPIO socket and allows for bi-directional control of both motors with an L293D H-Bridge motor driver chip. It also allows for control of both motor's speed independently and to use lower voltage motors than the voltage of your battery pack. The board can also supply the Raspberry Pi with up to 2 amps of power using a switch mode power supply, allowing you to run a fully-loaded Pi and the robot from 6xAA batteries

Good for use with any two 5-6V DC Motors or 5VDC Stepper! Not for use with 12V DC motors or steppers!



Raspberry Pi Robot Board v2 by MonkMakes - General Specifications

  • Turn your Raspberry Pi into a bi-directional motor controller
  • The board can supply the Raspberry Pi with up to 2 amps of power
  • The board can run two DC motors or a stepper



Raspberry Pi Robot Board v2 by MonkMakes - Technical Specifications

  • Size: 51mm x 51mm x 24mm
  • Weight: 21.8g



Videos



Documents





References

Adafruit Websitehttp://www.adafruit.com/products/1940
