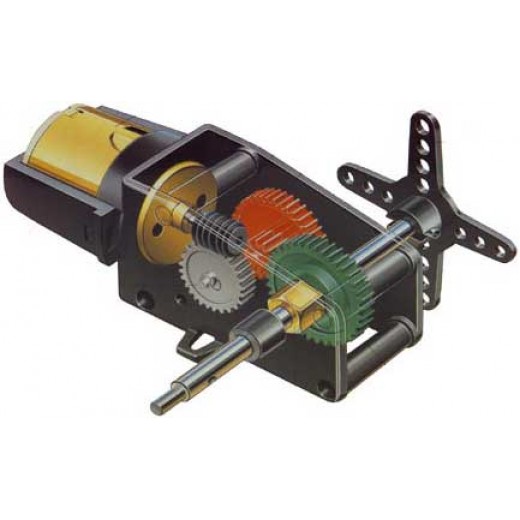

Tamiya Worm Gear Box

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Description

With the Tamiya Worm Gear Box, High Efficiency, it is possible to have high power or high speed with two different gear ratios. Several crank arms have been supplied along with a RE-260 motor. This gear box works well in a variety of Tamiya Construction or Robotics projects.

  • Gear Ratios: 216:1, 336:1
  • Motor: Mabuvhi RE-260
  • Motor RPM: 9400
  • Motor Voltage: 3V
  • Motor Stall Current: 2.7A
  • Motor Stall torque: 70 g-cm
$22.00
Qty:

Shipping Options to United States

Select Country:
* Region / State:

Tamiya Worm Gear Box info



With the Tamiya Worm Gear Box, High Efficiency, it is possible to have high power or high speed with two different gear ratios. Several crank arms have been supplied along with a RE-260 motor. This gear box works well in a variety of Tamiya Construction or Robotics projects.


Tamiya Worm Gear Box - Technical Specifications

  • Gear Ratios: 216:1, 336:1
  • Motor: Mabuvhi RE-260
  • Motor RPM: 9400
  • Motor Voltage: 3V
  • Motor Stall Current: 2.7A
  • Motor Stall torque: 70 g-cm

Tamiya Worm Gear Box - Product Description



The primary feature of the Tamiya Worm Gearbox from Tamiya’s high-efficiency series is a worm gear, which locks the output shaft whenever the motor isn’t turning. The high gear ratios of 216:1 or 336:1 make this gearbox appropriate for small walking robots, lifting mechanisms, and other applications where high torque is desired.58:1 and 203:1 gear ratios possible
