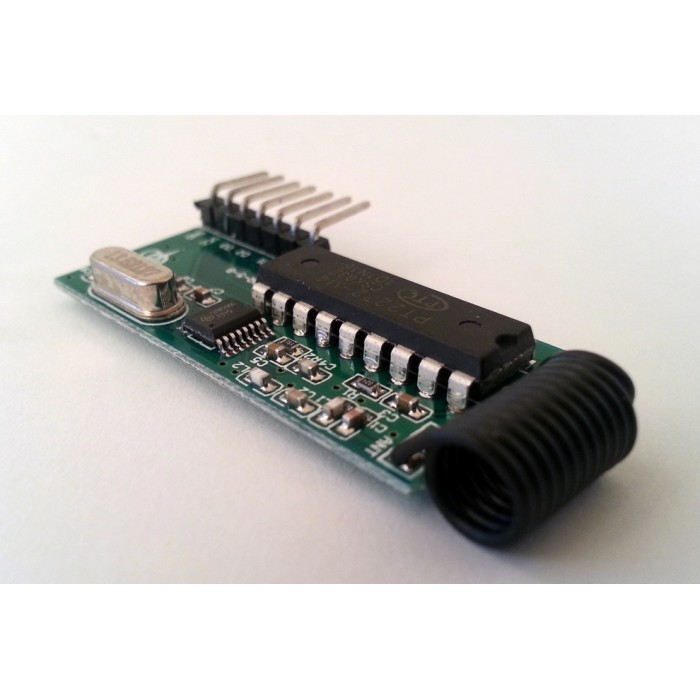

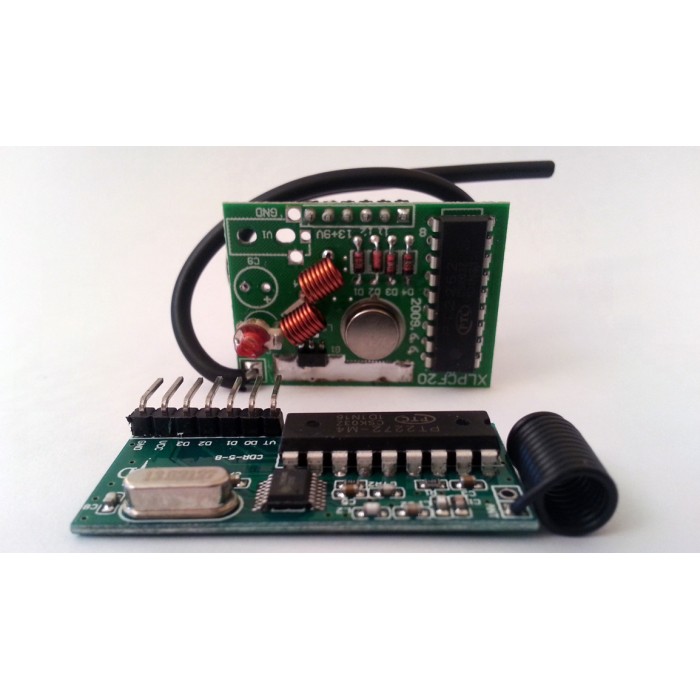

433MHz RF Long Distance 2km Transmitter- Receiver Pair - Seeedstudio

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91107
Availability: SOLD OUT Views: 51285
Product Description
  • 2KM long range 433mhz RF link kit
  • VCO, PLL technology
  • Steady frequency ability
  • Super anti-jamming ability
$26.00
Qty:

Shipping Options to United States

Select Country:
* Region / State:

433MHz RF Long Distance 2km Transmitter- Receiver Pair - Seeedstudio info

433Mhz RF Long Distance 2km Transmitter - Receiver Pair is a super long range 433MHz RF link kit. It comes with VCO, PLL technology, steady frequency and super anti-jamming ability. You can directly use it with your wireless data transport and remote control projects.



433MHz RF Long Distance 2km Transmitter- Receiver Pair - General Specifications

  • 2KM long range 433mhz RF link kit
  • VCO, PLL technology
  • Steady frequency ability
  • Super anti-jamming ability



433MHz RF Long Distance 2km Transmitter- Receiver Pair - Technical Specifications

  • Working voltage: Receiver(3-5V), Transmitter(3-9V)
  • Working current: ≤2.5mA(5.0VDC)
  • Working Principle: Superhet (VCO, PLL)
  • Modulation: OOK/ASK
  • Working band: 433.92MHz (customize service available)
  • Bandwidth: 1.5MHz
  • Sensitivity: -105dBm (50Ω)
  • Rate: <5Kbps
  • Decoding form: PT2272
  • Antenna length: 18cm
  • Emission Distance: 2 KM
