Adafruit USB Boarduino (Arduino compatible) Kit w/ATmega328 - v2.0

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91383
Availability: SOLD OUT Views: 11416
Product Description

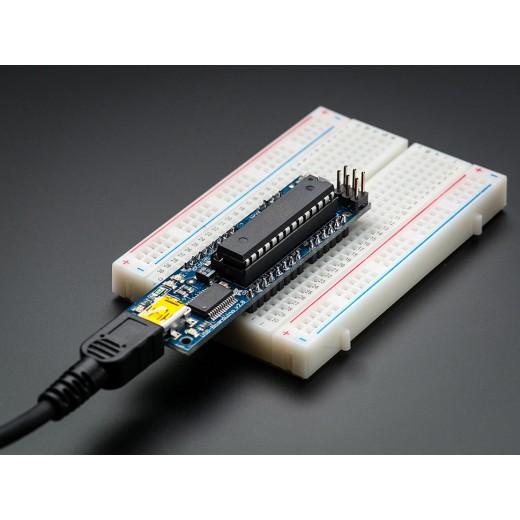

  • Designed to plug into a breadboard for easy prototyping
  • Petite size, only 75mm x 20mm
  • All 'standard' pins are brought out - Digital 0-13, Analog 0-5, ARef, 5V, 3V, Ground, and Reset
  • Chip comes pre-programmed with a "no-wait" Arduino bootloader
  • 4 LEDs! There's a green power-good LED, a red "pin 13" LED (just like the Arduino), and a pair of RX and TX indicator LEDs for debugging the serial connection
  • Reset button
  • ATmega328P, running at 16.00 MHz, just like all Arduinos
  • 6-pin standard ICSP header
  • USB miniB jack
  • 500mA fuse protects your computer's USB port from overcurrent
  • Auto-reset capability
$25.00
Qty:

Shipping Options to United States

Select Country:
* Region / State:

Adafruit USB Boarduino (Arduino compatible) Kit w/ATmega328 - v2.0 info

Adafruit USB Boarduino (Arduino compatible) Kit w/ATmega328 - v2.0 acts just like an Arduino and works with the latest Arduino software. For many projects it can even be preferable. The kit includes all parts necessary, the assembly is straightforward and well documented, using just a soldering iron anyone can complete it within 10 or 15 minutes.

Adafruit USB Boarduino (Arduino compatible) Kit w/ATmega328 - v2.0 does not have a DC jack. That means you can't use a 9V adapter or battery holder with it (unless you build a 5V power supply). However it does have USB built in and you can power your project with USB.



Adafruit USB Boarduino (Arduino compatible) Kit w/ATmega328 - v2.0 - General Specifications

  • Designed to plug into a breadboard for easy prototyping
  • Petite size, only 75mm x 20mm
  • All 'standard' pins are brought out - Digital 0-13, Analog 0-5, ARef, 5V, 3V, Ground, and Reset
  • Chip comes pre-programmed with a "no-wait" Arduino bootloader
  • 4 LEDs! There's a green power-good LED, a red "pin 13" LED (just like the Arduino), and a pair of RX and TX indicator LEDs for debugging the serial connection
  • Reset button
  • ATmega328P, running at 16.00 MHz, just like all Arduinos
  • 6-pin standard ICSP header
  • USB miniB jack
  • 500mA fuse protects your computer's USB port from overcurrent
  • Auto-reset capability



Adafruit USB Boarduino (Arduino compatible) Kit w/ATmega328 - v2.0 - Technical Specifications





Videos





Documents





References

Adafruit Websitehttps://www.adafruit.com/products/91
