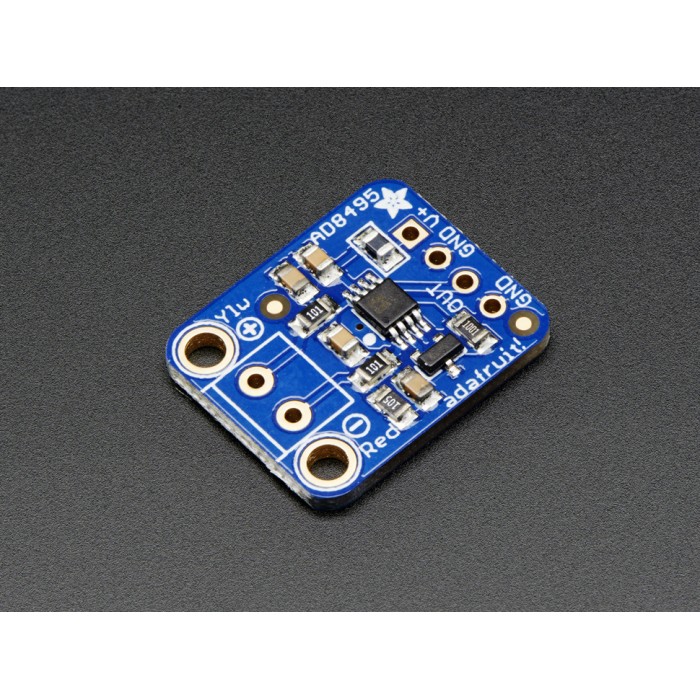

Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91617
Availability: In Stock Views: 8589
DeliverySame Day Delivery
Product Description
  • Works with any K type thermocouple
  • Will not work with any other kind of thermocouple other than K type
  • Easy to use analog output
  • Temp range with 5V power: -250°C to +750°C output (0 to 5VDC)
  • Temp range with 3.3V power: -250°C to +410°C output (0 to 3.3VDC)
$14.00
Qty: Add to Cart

Shipping Options to United States

Select Country:
* Region / State:

Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout info

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference.. Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout is very simple to use, and if your microcontroller has analog input capability, you'll be ready to go really fast!

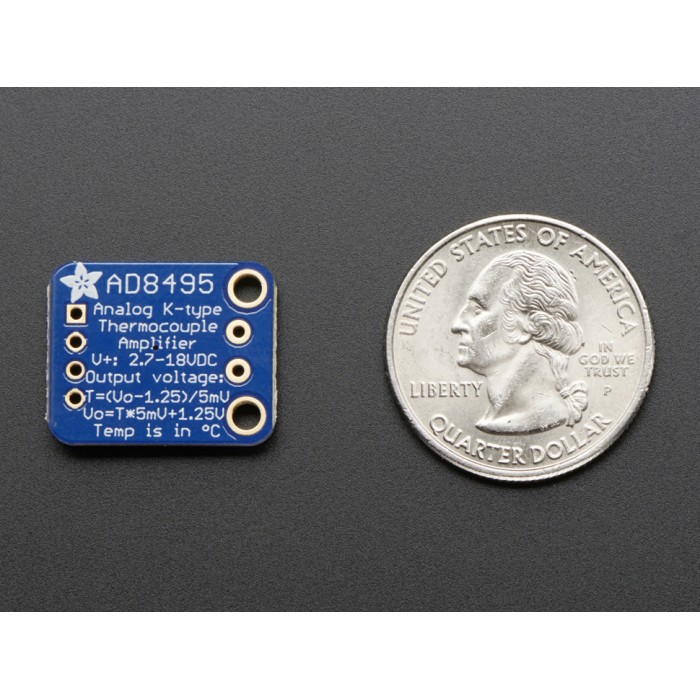

Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout from Analog Devices is so easy to use. The simple documentation is placed on the back of the tiny PCB. Power the board with 3-18VDC and measure the output voltage on the OUT pin. You can easily convert the voltage to temperature with the following equation:

Temperature = (Vout - 1.25) / 0.005 V.

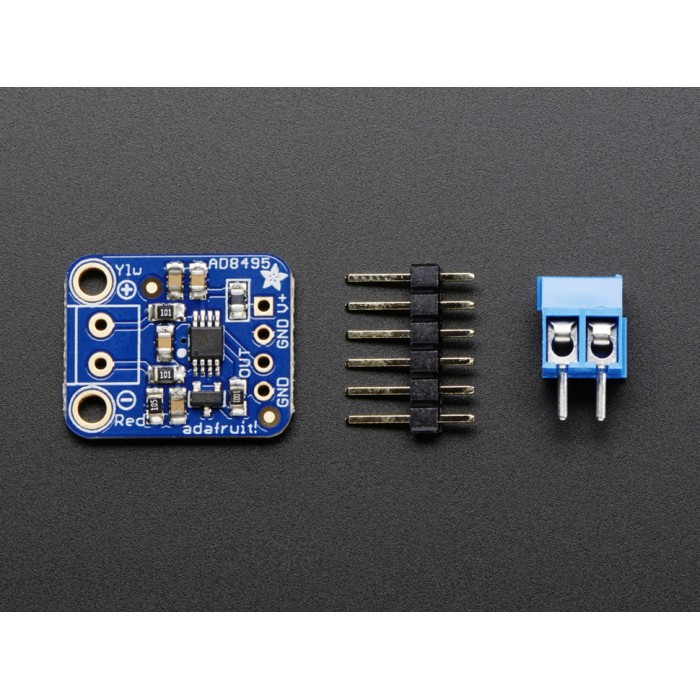

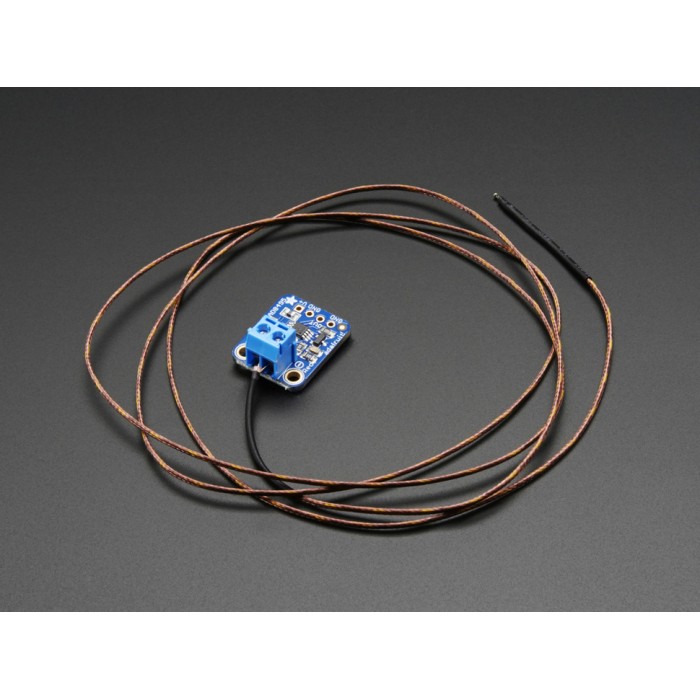

Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout comes with a 2 pin terminal block (for connecting to the thermocouple), a fully assembled PCB with the AD8495 + TLVH431 1.25V precision voltage reference, and pin header (to plug into any breadboard or perfboard).

Note that, Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout is not for use with any other kind of thermocouple, K type only!



Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout - General Specifications

  • Works with any K type thermocouple
  • Will not work with any other kind of thermocouple other than K type
  • Easy to use analog output
  • Temp range with 5V power: -250°C to +750°C output (0 to 5VDC)
  • Temp range with 3.3V power: -250°C to +410°C output (0 to 3.3VDC)



Analog Output K-Type Thermocouple Amplifier - AD8495 Breakout - Technical Specifications

  • Sensing Accuracy Range: ± 1°C around room temperature, ± 2°C for −25°C to +400°C
  • Sensing Temperature Max: 400°C
  • Sensing Temperature Min: -25°C
  • Supply Voltage: 3-18VDC
  • Dimensions: 20mm x 16mm x 2mm / 0.8" x 0.6" x 0.08"
  • Weight: 1.1g
