Raspberry Pi - HDMI 4 Pi: 7" Display no Touchscreen 800x480 - HDMI/VGA/NTSC/PAL

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91338
Availability: SOLD OUT Views: 10104
Product Description
  • 7-inch TFT display with 800x480 resolution
  • Extra-bright backlight
  • Adjustable color, brightness and contrast
  • Auto-detects input
  • Easy to set up.
  • Works connected to any device with HDMI, VGA or NTSC/PAL output.
$75.00
Qty:

Shipping Options to United States

Select Country:
* Region / State:

Raspberry Pi - HDMI 4 Pi: 7" Display no Touchscreen 800x480 - HDMI/VGA/NTSC/PAL info

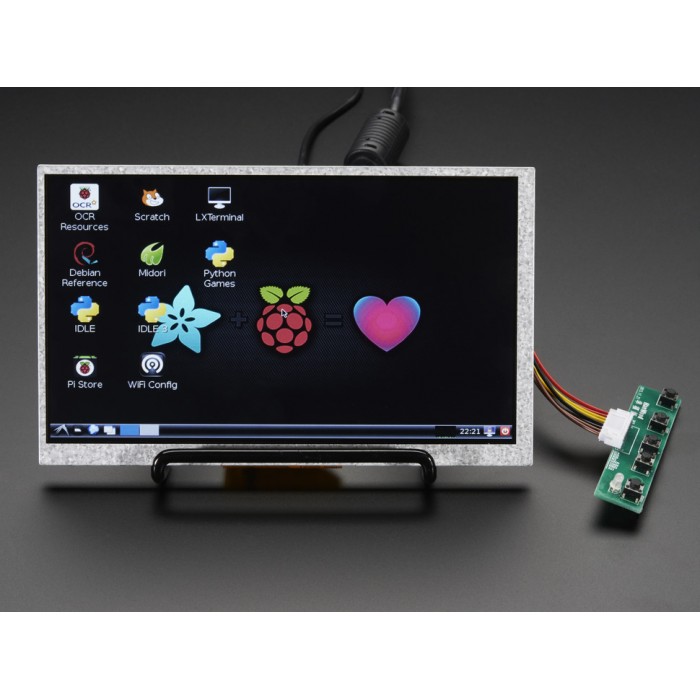

Make a lovely video setup with Raspberry Pi - HDMI 4 Pi: 7" Display no Touchscreen 800x480 - HDMI/VGA/NTSC/PAL. The visible display measures 7" diagonal and is a 'raw TTL' display, the model has an extra-bright backlight that looks much better than other 7" TFTs we've tested. We include a driver board with HDMI, VGA and Composite inputs.

There's a little wired PCB with little buttons that let you enter a menu system for adjusting brightness, color and contrast. It tries to auto-detect which input you have and switches to that one or you can 'select' from the menu which to display.
Raspberry Pi - HDMI 4 Pi: 7" Display no Touchscreen 800x480 - HDMI/VGA/NTSC/PAL will work connected to any device with HDMI, VGA or NTSC/PAL output. It will not work with a device that only outputs DVI (without a DVI to HDMI converter) or SECAM.
For use with a Raspberry Pi we suggest editing config.txt to set the HDMI to 800x480 in case it doesn't detect the resolution properlyThe easiest way to edit the config.txt is to put the Pi SD card into a computer and edit config.txt with any text editor and save.
For use with a BeagleBone Black running Ubuntu/Debian, we found it works when plugged in, no configuration required.
A power adapter is NOT included. You will need a 5-12VDC adapter to power the device.



Raspberry Pi - HDMI 4 Pi: 7" Display no Touchscreen 800x480 - General Specifications

  • 7-inch TFT display with 800x480 resolution
  • Extra-bright backlight
  • Adjustable color, brightness and contrast
  • Auto-detects input
  • Easy to set up.
  • Works connected to any device with HDMI, VGA or NTSC/PAL output.



Raspberry Pi - HDMI 4 Pi: 7" Display no Touchscreen 800x480 - Technical Specifications

  • Power with 5-24VDC
  • 16:10 display ratio
  • Resolution: 800 x 480
  • Visible area: 154mm x 86mm 16:10
  • Display dimensions: 165mm x 100mm x 6mm (6.5" x 3.9" x 0.2")
  • Brightness: 400cd/m2
  • Contrast: 500:1
  • Uses an AT070TN94 display - with a brighter backlight than the AT070TN90 or AT070TN92
  • Weight (excluding power cable): 144g
  • Not HDCP compatible - it cannot be used with 'secured' HDMI sources



Videos



Documents

Driver Datasheet

Keyboard Datasheet



References

Adafruit Websitehttp://www.adafruit.com/products/1934
