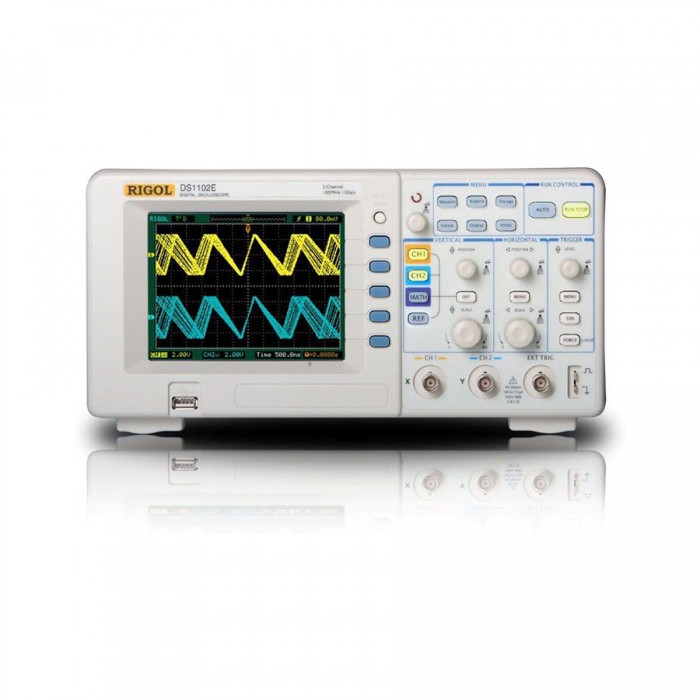

The DS1000E Series can sample up to 1 million measurement points. You can easily view the signal in a simple and detailed way. Capture the macro, check the micro.
Automatic or manual measurement
The DS1000E series provides 20 different wave parameters for automatic measurement. These 20 parameters are 10 voltage and 10 time parameters. In manual measurement mode, you can easily measure by moving the cursor. In addition, there are 3 different optional cursors available: Manual, Track, Auto.
Adjustable Trigger Sensitivity
Rigol oscilloscopes offer noise filtering to avoid false positives.
It offers two different time zones as real.
The user can arbitrarily set the rising / falling times on the signal trigger.
Ascent / Falling Peak Tetris
Generally, it allows you to see eye diagrams that are only found on the device.
Pass / Fail Test
The Pass / Fail function monitors for changes in the previously entered signal to determine if they exceed the limits. If the system's audible alert is turned on, it will not only be monitored, but will also alert if necessary.
Fast Fourier Transform (FFT)
This function provides the user with standard spectrum analysis. Supported FFT's: Rectangle, Hanning, Hamming, Blackman.
File system and USB Stick support
The device features an easy-to-use file interface, USB flash disk and local memory support.
