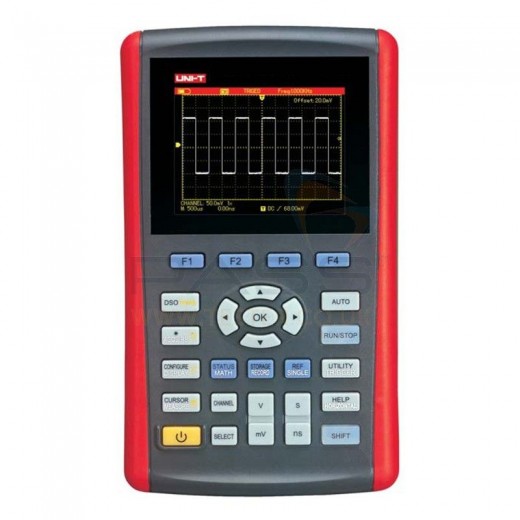

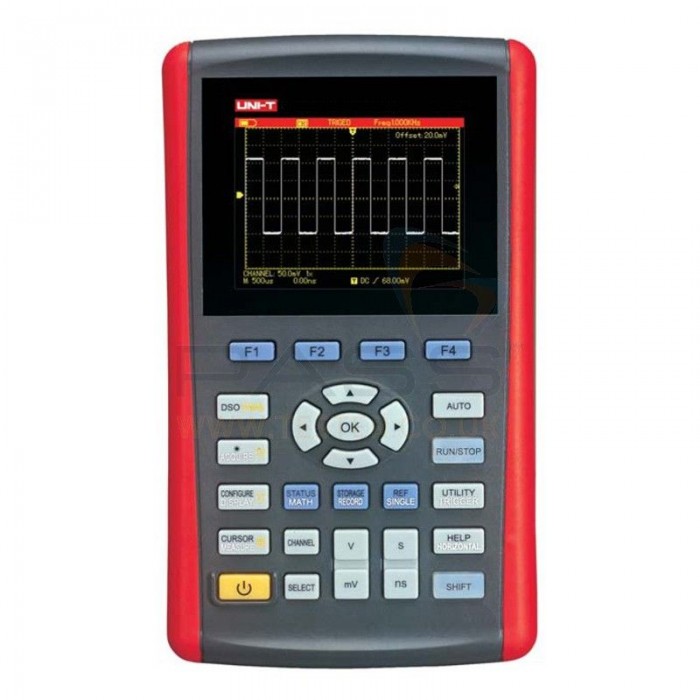

1CH 50MHZ 3.5' LCD 64K Color TFT Portable handheld digital storage Oscilloscope UTD1050CL
| UTD1000L Series | |||||
| Handheld Digital Storage Oscilloscopes (NEW) | |||||
| UTD1025CL UTD1050CL UTD1025DL UTD1050DL | |||||
| Introduction | |||||
| Product Features: 1, Fully Auto Scale; Vertical Scale and Timebase automatically adjusted with the signal and without any manual interference; 2, Unique and powerful Auto Setup, quick and accurate to set up for signals with any DC component; 3, Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div; 4, Isolated USB for much safer communication; 5, White and black display for your option, perfect for use outdoors with strong light; 6, Intelligent local or network software update 7, More than 8 hours of continuous battery operation | |||||
| Safety Rating | |||||
| DSO CAT II 300V | |||||
| DMM CAT III 600V | |||||
| Certifications | |||||
| CE | |||||
| EN 61010-1 | |||||
| Specification | UTD1025CL | UTD1050CL | UTD1025DL | UTD1050DL | |
| Channels | 1 | 2 | |||
| Bandwidth | 25MHz | 50MHz | 25MHz | 50MHz | |
| Sample Rate | 200MS/s | 250MS/s | |||
| Rise Time | ≤14ns | ≤7ns | ≤14ns | ≤7ns | |
| Memory Depth | 12kpts | ||||
| Vertical Sensitivity | 5mV/div~20V/div | ||||
| Timebase Range | 10ns/div~50s/div | 5ns/div~50s/div | 10ns/div~50s/div | 5ns/div~50s/div | |
| Storage | Bitmap, Setup, Waveform | ||||
| Trigger Modes | Edge, Pulse, Video, Slope | ||||
| Interface | Mini USB | ||||
| Multimeter Specifications | Range | Best Accuracy | |||
| DC Voltage (V) | 400.0mV/ 4.000V/ 40.00V/ 400.0V | ±(1%+5) | |||
| AC Voltage (V) | 400.0mV/ 4.000V/ 40.00V/ 400.0V | ±(1.2%+5) | |||
| DC Current (A) | 400.0μA/ 4000μA | ±(1.2%+5) | |||
| 40.0mA/ 4000mA | ±(1%+5) | ||||
| 10A | ±(1.5%+5) | ||||
| AC Current (A) | 400.0μA/ 4000μA | ±(2%+5) | |||
| 40.0mA/ 4000mA | ±(1.5%+5) | ||||
| 10A | ±(2.5%+5) | ||||
| Resistance (R) | 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ | ±(1.2%+5) | |||
| 40.00MΩ | ±(1.5%+5) | ||||
| Capacitance (C) | 51.20nF/512.0nF/5.120μF/51.20μF/100μF | ±(3%+5) | |||
| Display Count | 4000 | ||||
| General Characteristic | |||||
| Power | 100-240V 50/60Hz 1.5A | ||||
| LCD Size | 3.5 Inches 64K Color TFT LCD, 320×240 | ||||
| Product Color | Red and Grey | ||||
| Product Net Weight | 0.9 Kg | ||||
| Product Size | 199mm × 118mm × 49mm | ||||
| Standard Accessories | DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), 10A Current Divider, Power Cord, USB Cable,PC Software CD | DC Adaptor, Test Lead, Probe×2 (1×,10× switchable), High-current box, Small current box,Power Cord, USB Cable,PC Software CD | |||
| Standard Individual Packing | Gift Box, Carry Bag, English Manual | ||||
| Standard Quantity Per Carton | 10 PCs | ||||
| Standard Carton Measurement | 515mm x 470mm x 315mm | ||||
| Standard Carton Cross Weight | 24.5 Kg | ||||
| Optional Accessories | |||||
