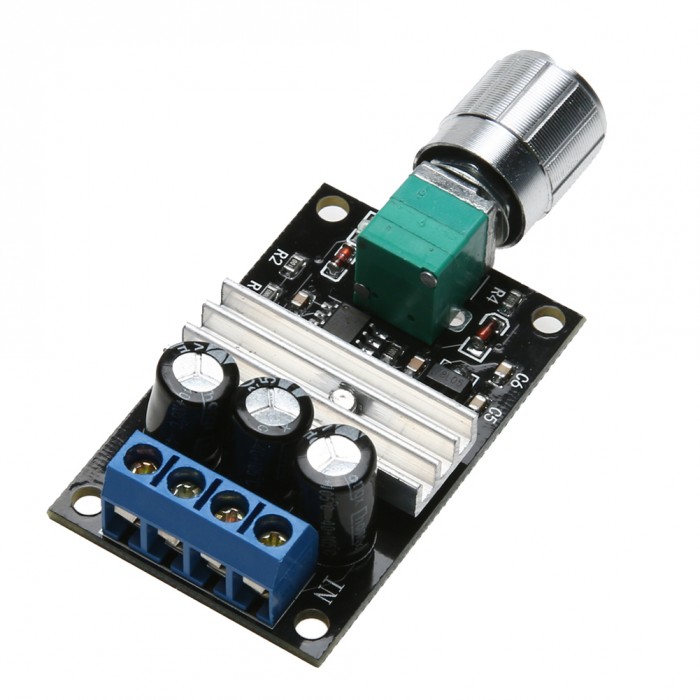

PWM DC 6-28V 3A Motor Speed Control

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 71145
Availability: SOLD OUT Views: 4584
$6.00
Qty:

Shipping Options to United States

Select Country:
* Region / State:

PWM DC 6-28V 3A Motor Speed Control  info

Product description:

  • With this controller, you can easily control the DC motor speed between 6V and 28V.
  • It is a card that produces high efficiency, high torque, low heat.
  • Reverse polarity protection, high current protection.
  • With the potentiometer on the circuit you can change the motor speed from 0% to 100%.
  • In addition to DC motor speed controls, you can also provide cooling control by setting the cooling power to a potentiometer depending on the current power in your Peltier cooling / heating projects.
  • Motor speed or current control to the Peltier; It can provide up to 3 amp of control by applying a constant current between 6 V and 28 V DC with a potentiometer (do not use a voltage exceeding DC 15 V in your Peltier.) The Peltier can operate with a DC current of 1 volt but not more than DC 15 volts.



Technical specifications:

  • Input supply voltage: DC 6V-28V
  • Maximum output power: 80W
  • Maximum continuous output current: 3A
  • PWM Task Cycle: 0% -100%
  • Size Approx. 32 x 32 x 15 mm
  • Material: Plastic, Metal

Package Included:

  • 1 x 1.8 - 15V 2A DC Motor Speed ​​Control PWM Speed ​​Regulator
