XBee Pro 868MHZ U.FL Antenna - XBP08-DPUIT-024

0 reviews  (0/5 ) 0 reviews  •  Write a review
Product Code: 91158
Availability: SOLD OUT Views: 9590
Product Description
  • No configuration needed for out-of-the-box RF communications
  • Common XBee® footprint for a variety of RF modules
  • Outdoor RF line-of-sight range up to 40 km
  • Simple to use peer-to-peer or point-to-multipoint topology
  • RF penetration and absolute transmission distance
$70.00
Qty:

Shipping Options to United States

Select Country:
* Region / State:

XBee Pro 868MHZ U.FL Antenna - XBP08-DPUIT-024 info

XBee Pro 868MHZ U.FL Antenna (XBP08-DPUIT-024) modules are long-range embedded RF modules providing end-point device connectivity for European applications. Supporting RF line-of-sight distances up to 80 km, these modules are ideal for challenging wireless environments where RF penetration and transmission distance are critical to the application.

As a member of the XBee family of RF products, XBee Pro 868MHZ U.FL Antenna modules are easy-to-use, share a common hardware footprint, and are fully interoperable with other XBee products utilizing the same technology.



XBee Pro 868MHZ U.FL Antenna - General Specifications

  • No configuration needed for out-of-the-box RF communications
  • Common XBee® footprint for a variety of RF modules
  • Outdoor RF line-of-sight range up to 40 km
  • Simple to use peer-to-peer or point-to-multipoint topology
  • RF penetration and absolute transmission distance



XBee Pro 868MHZ U.FL Antenna - Technical Specifications

  • RF Data Rate: 24Kbps
  • Indoor Range: 550m
  • Outdoor Range: 40km
  • Transmit Power: 1mW(0dB) to 315mW(+25dB)
  • Receiver Sensitivity: -112dB
  • Serial Data Interface: 3.3V CMOS Serial UART
  • Configuration Method: API and AT Commands
  • Frequency Band: 868MHz ISM
  • Serial Data Rate: 1.2Kbps to 230.4 Kbps
  • ADC Inputs: 6(10-bit)
  • Digital I/O: 13
  • Antenna: U.FL Antenna Connector
  • Encryption: 128-bit AES
  • Supply Voltage: 3.0V-3.6V
  • Transmit Current: 500mA @ 3.3V (800mA max)



Videos





Documents

XBee-PRO 868 Development Kit Getting Started Guide: http://www.digi.com/support/getasset?fn=90002155&tp=3

Product Manual: XBee-PRO 868 RF Modules: http://www.digi.com/support/getasset?fn=90001020&tp=3

Product datasheet

XBee - RF Family Comparison Matrix



References



Digi Web Site:

http://www.digi.com/products/wireless-wired-embedded-solutions/zigbee-rf-modules/point-multipoint-rfmodules/xbee-pro-868#overview



XBee Device

Tx Power

Range

Power Consumption

Antenna

Frequency

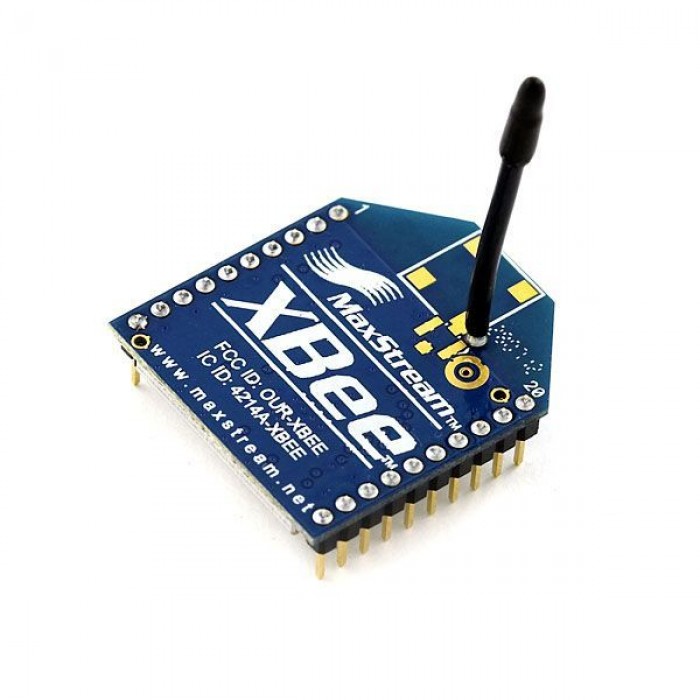

XBee 1mW

Wire Antenna - Series 1

          1mW

   100m

   50mA @ 3.3V

     Wire

      2.4GHz



XBee 1mW

PCB Antenna - Series 1

         1mW

   100m

    50mA @ 3.3V

     PCB

      2.4GHz

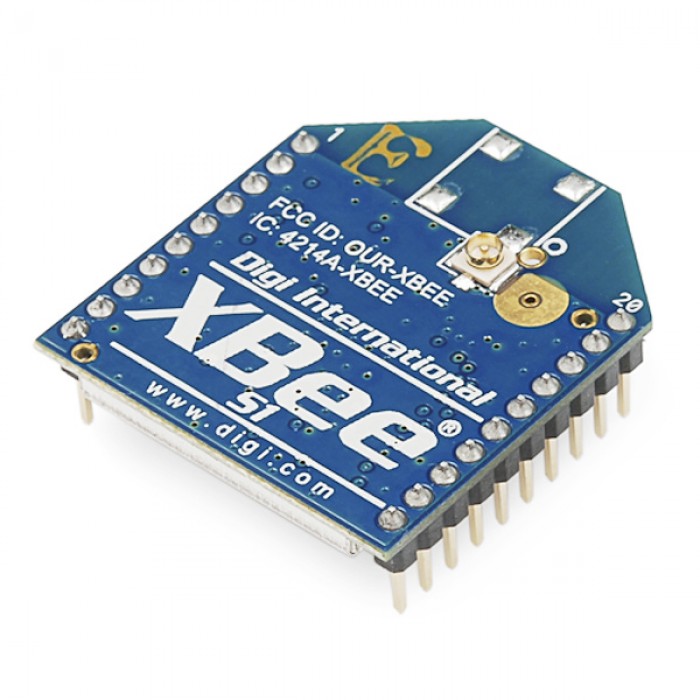

XBee 1mW

U.FL Connection - Series 1

          1mW

   100m

    50mA @ 3.3V

  Ext./Not     Included

      2.4GHz



XBee 2mW

Wire Antenna - Series 2

         2mW

   120m

  400mA @ 3.3V

     Wire

      2.4GHz



XBee 2mW

PCB Antenna - Series 2

         2mW

   120m

  400mA @ 3.3V

     PCB

     2.4GHz



XBee 2mW

RPSMA - Series 2

          2mW

   120m

  400mA @ 3.3V

  Ext./Not     Included

     2.4GHz

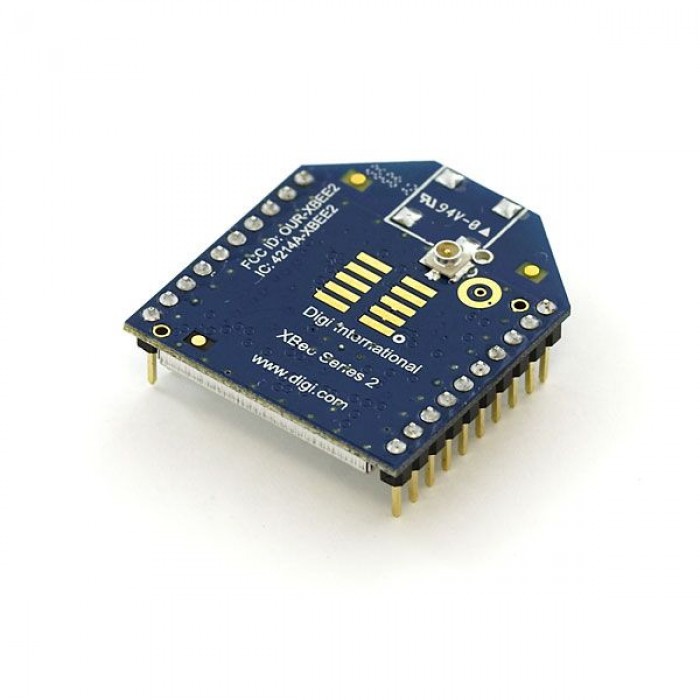

XBee 2mW

U.FL Connection - Series 2

          2mW

   120m

  400mA @ 3.3V

  Ext./Not     Included

      2.4GHz

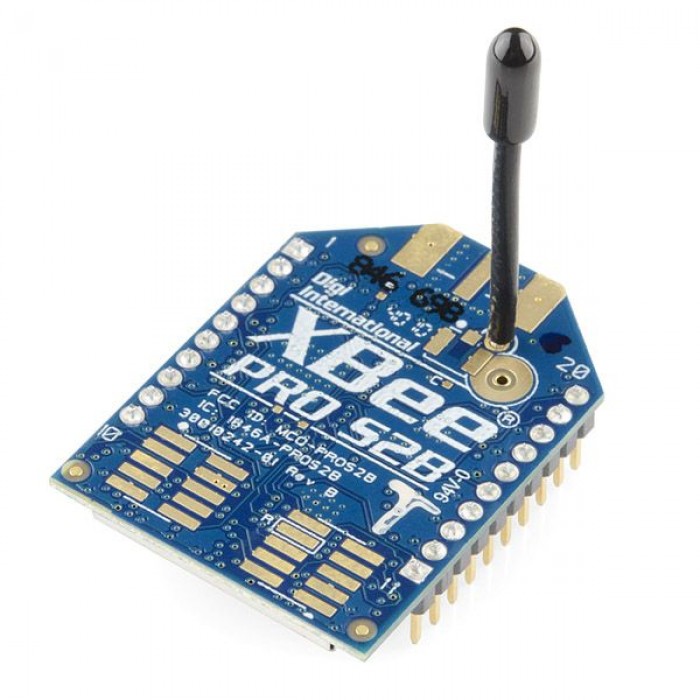

XBee Pro 63mW

Wire Antenna - Series 2B

         63mW

   1600m

  295mA @ 3.3v

     Wire

      2.4GHz



XBee Pro 63mW

PCB Antenna - Series 2B

         63mW

  1600m

  295mA @ 3.3v

     PCB

     2.4GHz

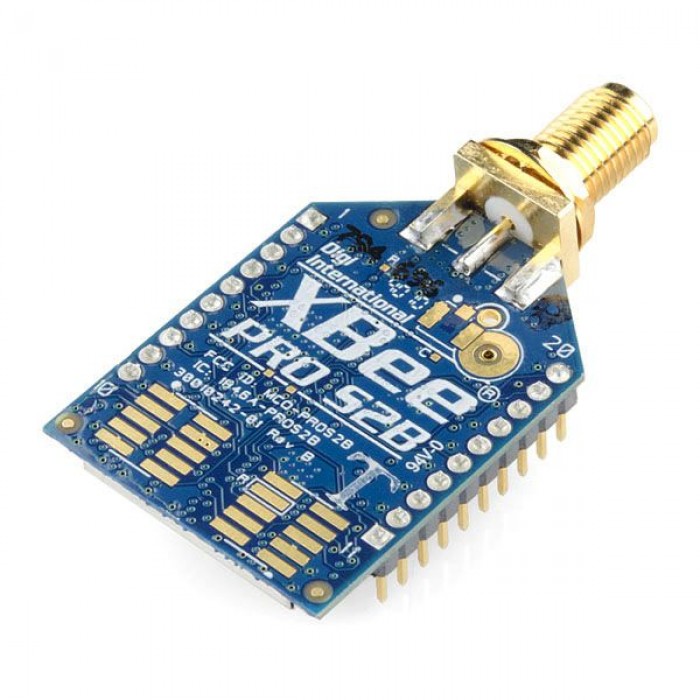

XBee Pro 63mW

RPSMA - Series 2B

        63mW

  1600m

  295mA @ 3.3v

  Ext./Not     Included

     2.4GHz

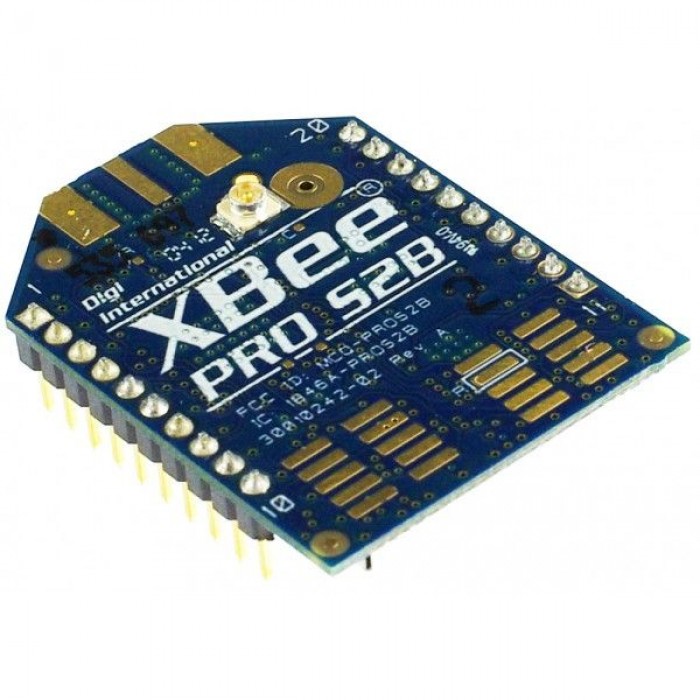

XBee Pro 63mW

U.FL Connection - Series 2B

        63mW

  1600m

   295mA @ 3.3v

   Ext./Not   Included

     2.4GHz



XBee Pro 60mW

Wire Antenna - Series 1

        60mW

  1600m

   215mA @ 3.3v

     Wire

     2.4GHz

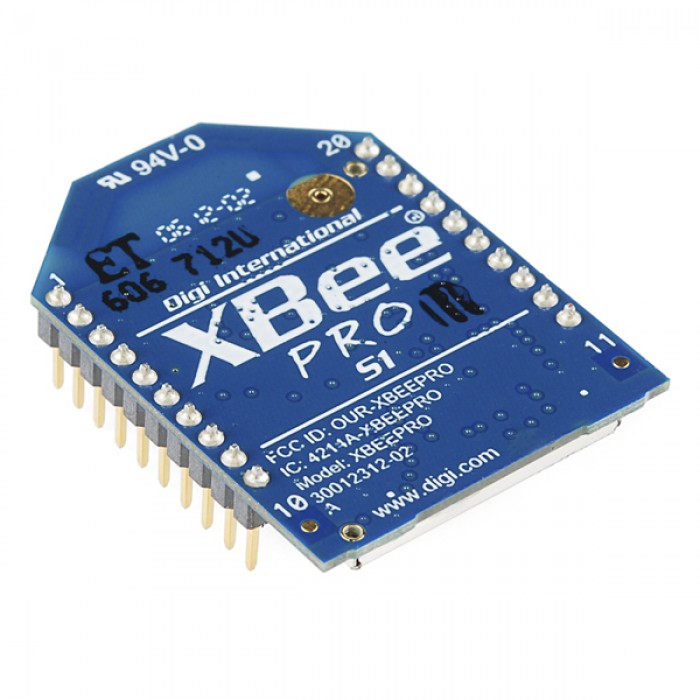

XBee Pro 60mW

PCB Antenna - Series 1

        60mW

  1600m

   215mA @ 3.3v

     PCB

     2.4GHz

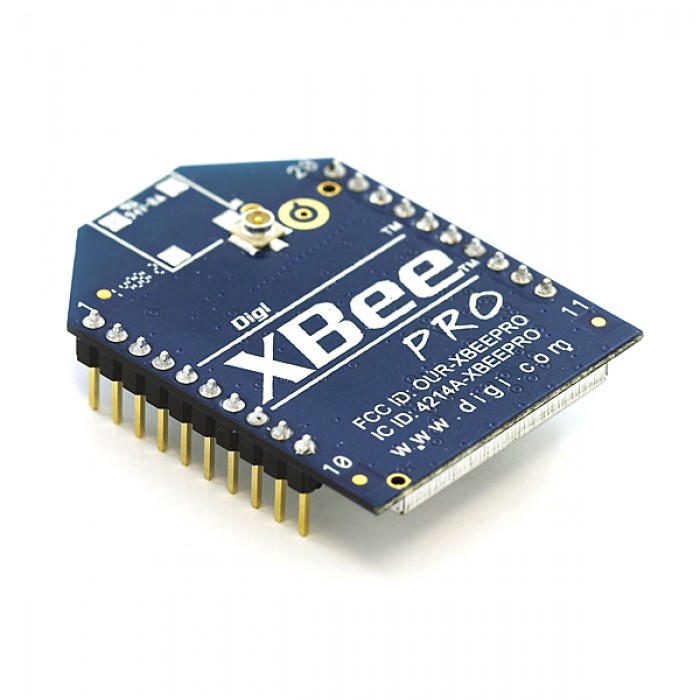

XBee Pro 60mW

U.FL Connection - Series 1

         60mW

   1600m

   215mA @ 3.3v

  Ext./Not     Included

     2.4GHz



XBee Pro 50mW

U.FL Connection - Series 2

         50mW

  1600m

   295mA @ 3.3v

  Ext./Not     Included

      2.4GHz



XBee Pro 900

Wire Antenna

         50mW

   10km

  210mA @ 3.3v

     Wire

     900MHz



XBee Pro 900

RPSMA

         50mW

   10km

  210mA @ 3.3v

   Ext./Not    Included

     900MHz



XBee Pro 900

U.FL Connection

         50mW

   10km

   210mA @ 3.3v

  Ext./Not     Included

     900MHz



XBee Pro 868MHz

Wire Antenna

   1mW-315mW

   16km

  500mA @ 3.3V

     Wire

     868MHz



XBee Pro 868MHz

RPSMA

   1mW-315mW

   40km

  500mA @ 3.3V

  Ext./Not     Included

     868MHz



XBee Pro 868MHz

U.FL Antenna

   1mW-315mW

   16km

   500mA @ 3.3V

  Ext./Not     Included

     868MHz
